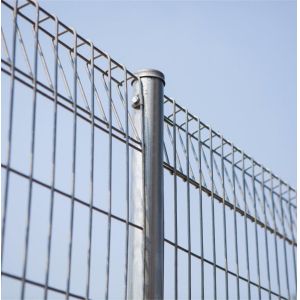

hot Dipped Galvanized Roll Top And Bottom BRC Fence Panel With 50× 150mm Hole
Description
Roll Top mesh fence is also called BRC fence, It is made of a
welded mesh panel fence that has a rolled top and bottom edge. The
unique design ensures there are no protruding sharp edges. The
panel is extremely rigid and with good see through visibility. This
system is ideal where safety is paramount, creating an ideal for
Parks and Recreational fencing, Playground fencing and School
fencing. This roll top fence / BRC is very popular in Australia,
Southeast Asia,Euro Market,etc
The height are available in a range of heights from 900 till 1800
mm.
The popular wire diameter are 4.0mm and 5.0mm,mesh holes are
50×150m,others are available.
Posts are manufactured from steel tubular section or round pipe
with threaded inserts for fixing the steel mesh clips. Additional
fixings are provided to accommodate stepping of panels where the
fence is installed on a gradient.
The general post section are square tube 60×60mm,60×80mm,others are
available.
Round pipeφ48mm,φ50,φ60mm,
HT-Fence welded wire panel fence is manufactured from galvanised
material,powder coated and pvc coated. The popular color is Green
RAL 6005 .If others color is required, we're easily able to provide
this.All of our fence power from AKZONOBEL Company.
Application
Mainly used for security protection in construction site, residential building, sports field, warehouse, highway or airport service area, railway station, etc.
Spcification
Panel Size | Post Size | ||||
Panel Heights(mm) | Panel Width(m) | Wire(mm) | Mesh Holes | Height(mm) | Post Section |
900 | 2.4&3 | 4.0&5.0 | 50×100mm 50×150mm 50×200mm | 1200 | Square tube 40×60mm 60×60mm 60×80mm Round Pipe φ50,φ60 |
1200 | 2.4&3 | 4.0&5.0 | 1500 | ||
1500 | 2.4&3 | 4.0&5.0 | 1900 | ||
1800 | 2.4&3 | 4.0&5.0 | 2200 | ||
2100 | 2.4&3 | 4.0&5.0 | 2500 | ||
2400 | 2.4&3 | 4.0&5.0 | 3000 | ||
Other size are available on request.
Surface Treatment Type
Hot dipped galvanized after fabricated
Galvanized material fabricated and then powder sprayed coating&pvc coated
Hot dipped galvanized after fabricated and then powder sprayed coating&pvc coated
The powder material from AKZONOBEL,Dupont,it can make strongly resist the corrosive and ultraviolet radiation.Doubld caoting layer make the fence long life more than 10years.
Suface Type | Min | Max |
Hot dipped galvanized | 450g/m2 | 650g/m2 |
Powder coating | 60μm | 120μm |
PVC Coated | 450μm | 650μm |
Color range,RAL6005,RAL7016,RAL9005 is very popular,you can choose what color you request
Galvanized and powder layer quality
Other colours are available on request.
Features
Security protection solution
Panels has roll top and bottom
Qucik and Easy install
Beautiful and economy.
Our Advantage
Advance machine for this fence,PVC coated line,powder coating line
All part do in our factory,quality control and delivery time is best
If need,free design,free sample can be provide
Raw material of powder and PVC from Akzonobel,Dupont
18years factory,11years export experience
Installation Process
1.Make the concrete with hole
2.Put the post into the concrete and fixed
3.Put the panel on the post and use the clamps,bolts and nuts fixed
4.if need,installation the razor wire or barbed wire on the top
You can contact us to get the detail installation guide
Quality Inspection
Packing
We provide two choice on the packing,wood pallet and metal pallet,you can choose which you need.
Wood pallet will be cost higher than metal pallet.
As our suggestion:
If you are distributor,wood pallet will be good.
If you are contractor,metal pallet will be good.
|
|
