Wire Mesh Fencing Manufacturer
6 Years
| Ask Lasest Price | |
| Brand Name : | TOP HESCO BARRIERS |
| Model Number : | Military Barriers |
| Certification : | ISO |
| Price : | 5USD-135USD per roll |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 500 pcs per week |
| Delivery Time : | 15 work days |

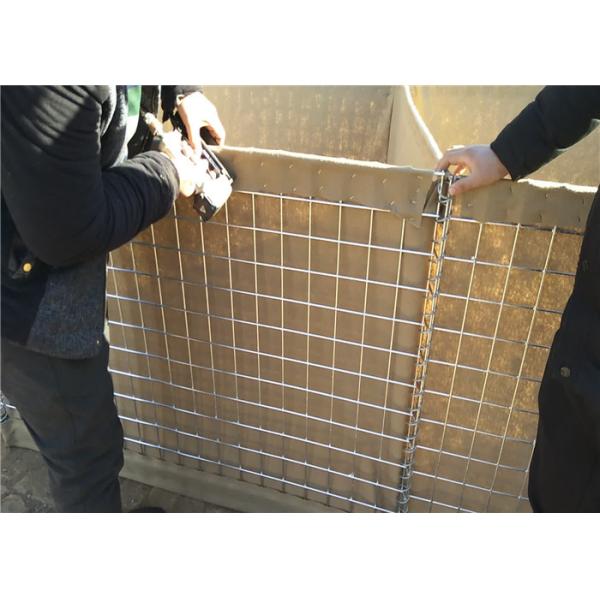

Flood Defensive Barriers Made by 2.13M×1.06M and 2.13M×0.53M panel.With Geotextile and Spring Wire from a collapsible Wire Mesh Container, which can filled with sand or earth in it as a protection Line along with the coastline. The length can be adjust according to your requirements.
Brief Introduction of Military Defensive HESCO Barriers:
1. Wire Diameter: 5.00mm Zinc- Aluminum Wire
2. Mesh Size: 3" (76.2x76.2mm)
3. Panel Size: 2.13 x 1.06 M
4. Diameter of Spring: 4.0mm, used for connecting and collapsible
5. Geotextile: UV Protection Geotextile, the weight is about 250 g/㎡ to 300 g/㎡
6. Color: Beige or Military Green
7. Total Size: 2.13 x 1.06 x 33.00 M
8. No. of Cells: 30 Cells (6x5 cells)
9. Finish: Galvanized
10. Package: Packed in pallet, with Plastic Film or Shrink Film
The Technical Specifications from SX 1 to SX 19
| Welded Military Sand Filled HESCO Barriers | |||
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
Other Application for Welded Defensive HESCO Barriers:
1. Perimeter Security Barrier and Defence Gabion Wall
It can connected into a whole use Joint Pin to form a Perimeter Security Barrier and Defence Wall.
2. Temporary Fort and Command Post
Because of Military Defensive Barriers can divide into many small cells, can change the direction esaily to form a rectangular Temporary Fort and Command Post.
3. Observation Points and Border Checkpoints
It can also stacked together to form Observation Points and Border Checkpoints.
The Advantages of Welded Defensive HESCO Barrier:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured from Galvanised coated, welded mesh. The mesh must be made of rust protected alloy materials.The Wire Mesh must have a guaranteed life of not less than 5 years while exposed to environment and 10 years when in store.
2. Collapsible
Mesh Panel is joint by spring which is a circle, Mesh Panle can turn 360° unobstructed, so, when shiping the goods, it is collapsible to save space.
3. Easy to repair
As a protection Wall to prevent Bullets and shells, there would be small part damage, Just use one piece of welded wire mesh panel insert into the earth and cover the damage part, it can also work long time.
|
|
