Wire Mesh Fencing Manufacturer
5 Years
| Ask Lasest Price | |
| Brand Name : | AS4671 |
| Model Number : | Ribbed Square Mesh |
| Certification : | ISO |
| Price : | 350$-650$/ton |
| Payment Terms : | T/T |
| Supply Ability : | 1000ton per year |
| Delivery Time : | 14 days |

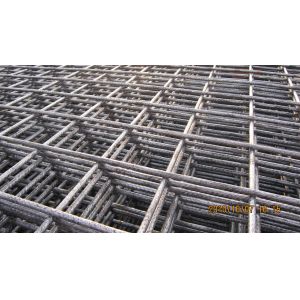

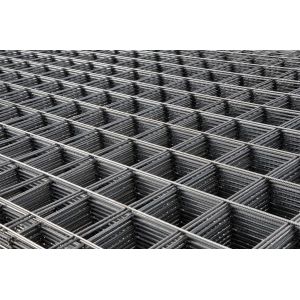

AS 4671 Carbon Steel Welded Wire Mesh Screen, Reinforcing Wire Mesh For Concrete
This general purpose mesh is used for reinforcing flat concrete elements such as floor slabs and walls.
Square mesh is manufactured from L grade ribbed wires (D500L) that are welded together with equal spacing in both directions to form square apertures.
We have square mesh available in sheets of two sizes: Full-size mesh sheets are 6m x 2.4m with side lap wires to minimize the laps between sheets on large areas 4B2 Mesh® is the same high-quality mesh but produced in a handy 2m x 4m sheet, perfect for smaller jobs like driveways or DIY.
| Tensile Strength | Yield Strength | Ratio | Elongation | Shear Force Average | Cold Bend |
| Rm≥550MPa | Rp0.2≥500MPa | Rm/Rp0.2≥1.03 | 25% | ≥0.5Rek.LAs | D=3d |
| Product: | cold-rolled ribbed mesh cold-drawn plain mesh stainless steel mesh | ||||
| We confirm that all test sample are from the same batch(grade, share, geometric, production process, delivery condition)and also passed the test conducted by our quality control department. | |||||
REBER & REO WIRE Product Designations
| AS/NZS 4671* Designation | Designation** | Yield Stress(MPa) | Ductility Class*** | Product Designation | Source Material Type | Size Range |
| D500N | N_ | 500 | N | Hot rolled deformed rebar | MICROALLOY(MA) CONTISTRETCH(CS) | N12-N40 straight stock lengths N10, N12, N16 off the coil |
| R250N | R_ | 250 250 | N | Hot rolled round rebar | Mild Steel | R6, R10, R12 off coil R16-R28 straight stock lengths |
| D250N_**** | S_ | 250 | N | Hot rolled deformed rebar | Mild Steel | S12-straights |
| D500L_ | RW_ | 500 | L | Cold rolled ribbed wire | Mild Steel | RW5-RW12 off coil |
| R500L_ | W_ | 500 | L | Cold has drawn round wire | Mild Steel | W4-W12 off coil |
*AS/NZS 4671: 2001 Steel reinforcing materials, D = Deformed, R = Round, N = Normal Ductility, L = Low Ductility **_indicates bar diameter(mm), N = Normal, R = Round, S = Structural, RW = Ribbed Wire, W = Wire *** Uniform Strain Limits N: Normal(≥5%) L: Low(≥1.5%) | ||||||
Square Mesh AS/NZS 4671- Class L
| Product Code | Std Unit | Longitudinal Wires | Cross Wires | Mass(kg) | Dimensions(m) |
| SL52 | sheet | 10×4.77@200+4×4@100 | 30×4.77@200 | 21 | 6×2.4 |
| SL62 | sheet | 10×6@200+4×4.77@100 | 30×6@200 | 33 | 6×2.4 |
| SL72 | sheet | 10×6.75@200+4×4@100 | 30×6.75@200 | 41 | 6×2.4 |
| SL81 | sheet | 25×7.6@100 | 60×7.6@200 | 105 | 6×2.4 |
| SL82 | sheet | 10×7.6@200+4×5.37@100 | 30×7.6@200 | 52 | 6×2.4 |
| SL92 | sheet | 10×8.6@200+4×6@100 | 30×8.6@200 | 66 | 6×2.4 |
| SL102 | sheet | 10×9.5@200+4×6.75@100 | 30×9.5@200 | 80 | 6×2.4 |
| ×Diameter (mm) × Spacing (mm) | |||||
Rectangular Mesh AS/NZS 4671 - Class L
| Product Code | Std Unit | Longitudinal Wires | Cross Wires | Mass(kg) | Dimensions(m) |
| RL718 | sheet | 25×6.75@100 | 30×7.6@200 | 67 | 6×2.4 |
| RL818 | sheet | 25×7.6@100 | 30×7.6@200 | 79 | 6×2.4 |
| RL918 | sheet | 25×8.6@100 | 30×7.6@200 | 93 | 6×2.4 |
| RL1018 | sheet | 25×9.5@100 | 30×7.6@200 | 109 | 6×2.4 |
| RL1118 | sheet | 25×10.7@100 | 30×7.6@200 | 130 | 6×2.4 |
| RL1218 | sheet | 25×11.9@100 | 30×7.6@200 | 157 | 6×2.4 |
|
|
