| Brand Name : | LNF-2d fencing panels |
| Model Number : | 868 and 656 twin wire |
| Certification : | ISO |
| Price : | 3.88$ per liner meter |
| Payment Terms : | TT30% deposit balance 70% at sight of finished products |
| Supply Ability : | 10000 liner meters |
| Delivery Time : | 7 work days |

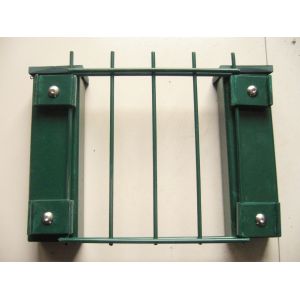

Also named as a double wire security fence, double rod fence. As per the customer's request from Europe, we made this double wire fence.
Now we would like to supply our popular specifications, as follows:
1.Wire diameter: Horizontal 6mmX2 +Vertical 5mmX1.
2.Hole/Mesh: 50X200mm.
3.Post: 60X60mm thickness 1.5mm.
4.Fence panel : height 1600 X length 2500mm.
5.Post height: 2100mm (remain 500mm under the ground).
Mesh size | 200mm x 50mm |
Width | 2506mm |
Height | 630mm to 2430mm and 3030mm in 400mm increments |
Horizontal wires | Double 8mm |
Vertical wires | Single 6mm |
Spike to top edge | 30mm |
Fastenings:
The Panels and posts are joined together with bolts or rivets,
using the steel flat bar, or special steel clamps, all nuts are
self-locking. This also can be designed as a special client's
requests.
Application:
Schools,
Recreation Area,
Commercial Site,
Industrial Estates,
Sports Grounds,
|
|
