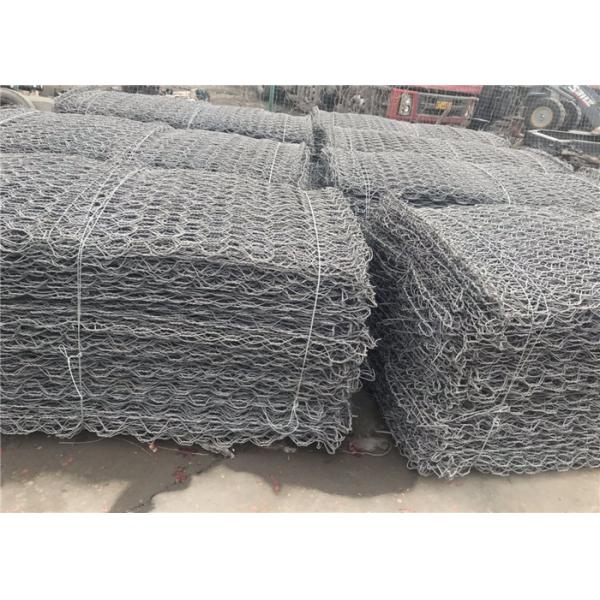

    Gabion Wire Mesh gabion retaining wall

    Ask Lasest Price
    Brand Name : LNF-Gabion Wire Mesh
    Model Number : Gabion For Sale
    Certification : ISO
    Price : 1.08$-9.88%/SQM
    Payment Terms : T/T
    Supply Ability : 100000SQM PER WEEK
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Gabion Wire Mesh gabion retaining wall

    Gabion Wire Mesh gabion retaining wall


    Product Description

    Gabion Boxes

    Opening (mm)

    Wire Diameter

    (mm)

    Wire Diameter (PVC Coated)/
    Inner/Outside(mm)

    Strands

    60X80

    2.0-2.8

    2.0/3.0-2.5/3.5

    3

    80X100

    2.0-3.2

    2.0/3.0-2.8/3.8

    3

    80X120

    2.0-3.2

    2.0/3.0-2.8/3.8

    3

    100X120

    2.0-3.4

    2.0/3.0-2.8/3.8

    3

    100X150

    2.0-3.4

    2.0/3.0-2.8/3.8

    3

    120X150

    2.0-4.0

    2.0/3.0-3.0/4.0

    3

    gabion Material:low carbon steel

    electro galvanized—15-20g/m2

    hot dipped galvanized,—40-60g/m2

    heavy galvanized,—240-260g/m2

    Galfan wire—10Al with more than 240g zinc coating

    PVC coated—dark green, grey and etc

    Tensile strength:380-550N/mm2


    Detailed Images

    Mesh wire dia:2.7mm,3.0mm
    Selvage wire dia:3.4mm,3.9mm
    Lacing wire dia:2.0mm,2.2mm (extra1.5%-2% of total weight included)

    Opening:60×80mm 100×120mm,70×90mm,90×110mm,90×130mm,120×150mm,160×180mm,200×250mm

    gabion size:
    1m×1m*×1m without diaphragm
    2m×1m*×1m with 1 diaphragm
    3m×1m*×1m with 2 diaphragm
    6m×1m*×1m with 5 diaphragm

    or as your request

    Gabion boxes applications:
    Control and guide of water or flood
    Flood bank or guiding bank
    Preventing of rock breaking
    Water and soil protection
    Bridge protection
    Strengthening the structure of the soil
    Protection engineering of seaside area

    Packing & Delivery

    60-65PCS per compact bundle
    13tons per 20ft container
    26tons per 40ft container

    Gabion Wire Mesh gabion retaining wallGabion Wire Mesh gabion retaining wall
